Amroll Drum Motor--TM320HK

TM320HK drum motor is a heavy roller designed for conveying single heavy items or bulk materials.Its maximum power can reach 7.5kW and its speed can range from 0.62 to 2.88m/s.This kind of drum motor is typically used in:

Mining industry - for ore conveying, crushing and screening
Metallurgical industry - for transporting materials on production lines in the steel, non-ferrous metal and foundry industries.
Construction industry - for the production, conveying and handling of concrete products
Logistics - production line conveying, packaging line conveying
Agriculture - storage of grain
Port industry - conveying of bulk goods, timber, etc., unloading of vessels

Motor type：Asychronous, AC, 3 phase
Key words： Belt drive, Oil-filled
Tag：Heavy-duty, Strong torque

Description
Additional information

Drum motor shell

●Mild steel cylindrical shell
●The standard shell is vulcanised or cold covered with rubber

Gear transmission

●Gears machined and honed to AGMA/DIN 6 standards to ensure low noise
●Cast iron gearbox

Motor

● Common global voltages at 50 Hz or 60 Hz
● AC asynchronous motor
● Motor windings insulation class F
● Oil cooled electrical motor
● Terminal Box Outlet

Sealing system

●Double shaft sealing system
●Sealing system-degree of protection IP 66/67

Oil

●Pre lubricated with oil
●oilchange recommended every 50,000 hours of operation

Other items

●Abackstop on request
● Face width (L)on request
●Non-standard drum motors are available on request

*AMROLL Drum Motor TM320HK-3400V/50Hz**
Power [kw/hp]	No.of poles	Gear stages	Gear ratio	Nominal belt speed [m/s]	Lagging belt speed [m/s]	Full load torque [Nm	Full load belt pull [N]	Full load current [A]	Min. face width L)[mm]	Min.L Weight [kg]
4/5.5	4	2	38.33	0.63	0.67	978	5807	8.80	600	125
			29.98	0.80	0.86	868	5154
			24.95	1.00	1.03	667	3960
			19.63	1.25	1.31	524	3111
			17.02	1.45	1.51	454	2696
5.5/7.5	2	2	38.33	1.25	1.34	678	4026	11.00	600	135
			29.98	1.63	1.72	540	3206
			24.95	1.96	2.05	448	2660
			19.63	2.49	2.62	354	2102
			17.02	2.88	3.03	305	1811
	4	2	29.98	0.80	0.86	1080	6413	12.00	600	135
			24.95	1.00	1.03	895	5314
			19.63	1.25	1.31	706	4192
			17.02	1.45	1.51	609	3616
7.5/10	2	2	38.33	1.25	1.34	925	5492	16.00	600	145
			29.98	1.63	1.72	737	4374
			24.95	1.96	2.05	612	3634
			19.63	2.49	2.62	482	2859
			17.02	2.88	3.03	417	2476

TM320HK optional list-drum motor/idler pulle

TM320HK optional list-drum motor/idler pulley
Specifications	Drum moto	dler pulley
Shell
Mild steel cylindrical	1	1
Special crowned and fluted type	2	2
End housing (front &rear)
Cast iron	1	1
Shaft(front &rcar)
Mild stee	1	1
Gear box &rear flange
Cast iron	1	1
Rubber lagging
Rubber lagging (NBR)	1	1
Other sizes,materials or surface textures	2	2
Electrical motors
3*400V/50Hz	1
Most common global voltages at 50 or 60 Hz	2
Lubricating oil
No.150 gear oil(-20℃)	1
Low temperature oil(-40℃)	2
Electrical connection
Terminal box connector	1
Other options
Abutment	1
Mechanical backstop	2
Operation with VFD	2

Note:1-fitted as standard 2-optional extras

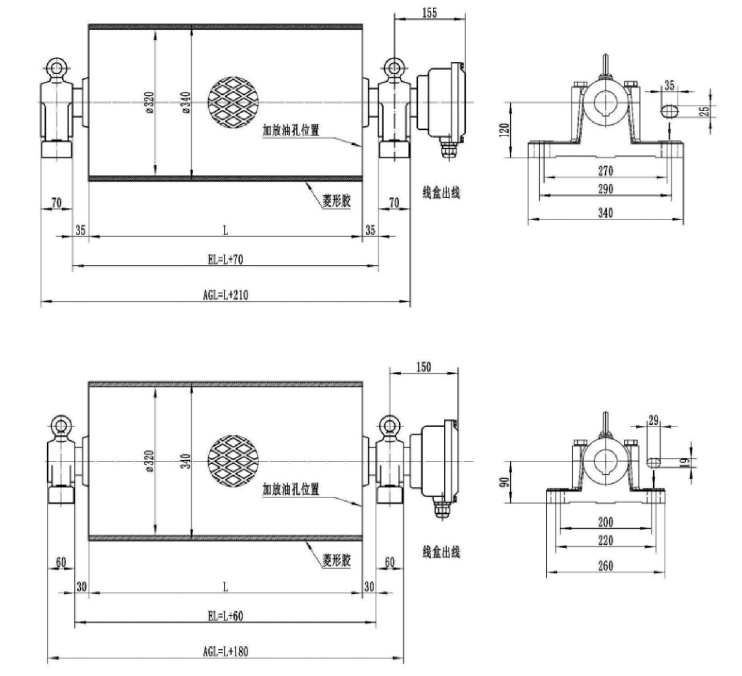

Standard Dimension

TM320HK Drum motor
