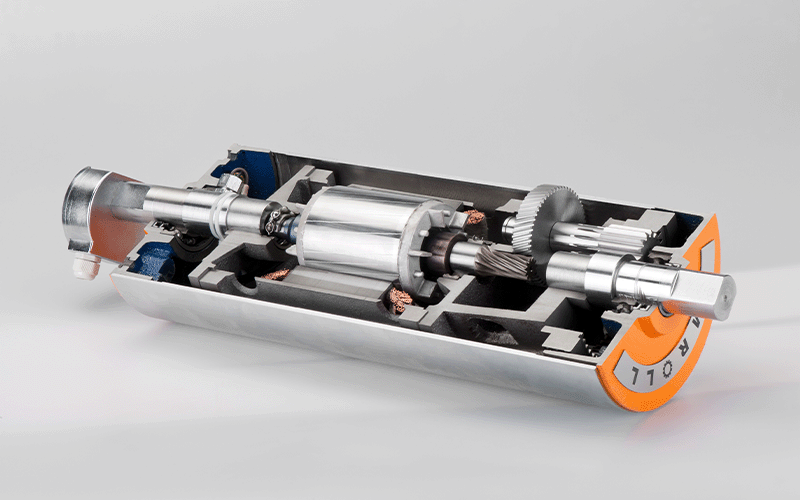

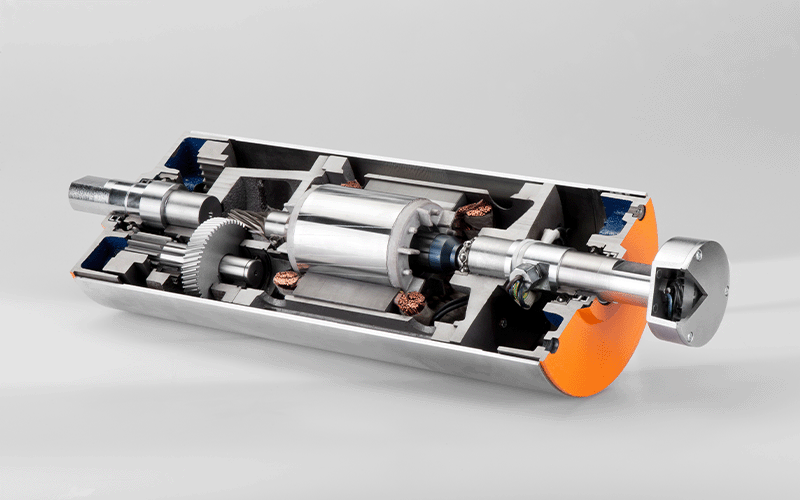

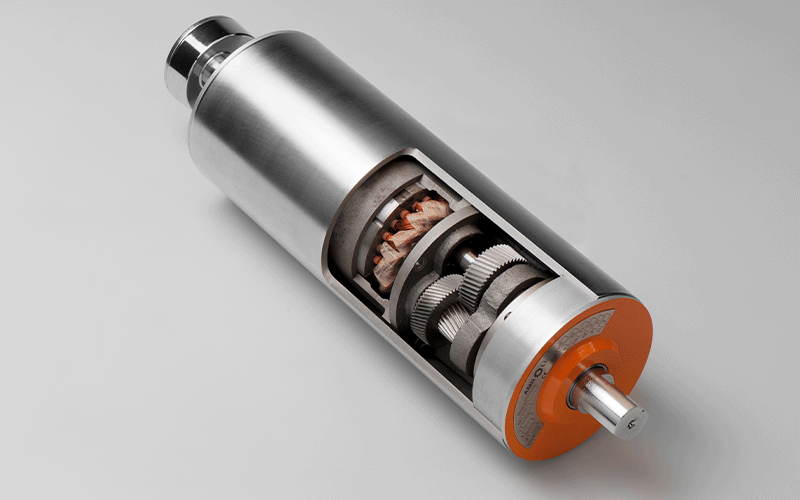

Amroll Drum Motor--TM165H

TM165H drum motor uses three-phase asynchronous motor. It is mainly used for belt conveying equipment with heavy load.With characteristics of strong shape, impact resistance and strong torque,it is the best choice of large load conveying equipment.This kind of drum motor is typically used in:

Baggage check-in counters at airports
Package machines
Postal sorter
Warehousing and vehicle loading
Assembly line
Belt conveyor for agricultural products
Belt conveyors

Motor type：Asychronous, AC, 3 phase
Key words：Belt drive, Oil-filled
Tag：Heavy-duty, Strong torque

Description
Additional information

Drum motor shell

●Mild steel crowned shell treated with anti-rust oil
●The standard shell is coronal and the surface is machined with non-slip threads

Gear transmission

●Gears machined and honed to AGMA/DIN 6 standards to ensure low noise
●Cast iron gearbox

Motor

●Common global voltages at 50 Hz or 60 Hz
●AC asynchronous motor
●Motor windings insulation class F
●Oil cooled electrical motor
●Cable length minimum 1.2 meters outside shaft

Sealing system

●Double shaft sealing system
●Sealing system-degree of protection IP 66/67

Oil

●Pre lubricated with oil
●Oil change recommended every 50,000 hours of operation

Other items

●Electromagnetic brakes are optional,but the length of the shell will be lengthened accordingly
●Belt speed and face width (L) on request
●International authority CE and UL safety certification
●Non-standard drum motors are available on request.

*AMROLL Drum Motor TM165H-3 400V/50Hz**
Power [kW/hp]	No.of poles	Gear stages	Gear ratio	Nominal belt speed [m/s]	Full load torque [Nm]	Full load belt pull [N]	Full load current [A]	Min. face width (L) [mm]	Min.L Weight [kg]
0.25/0.34	8	3	62.37	0.1	193.88	2350	1.32	470	36
			46.56	0.13	149.13	1808
			39.31	0.16	121.17	1469
			28.71	0.21	96.94	1175
			24.23	0.25	77.55	940
		2	19.64	0.31	61.88	750
			14.66	0.42	49.5	600
			12.38	0.5	39.6	480
0.37/0.50	4	3	62.37	0.2	143.47	1739	0.98	420	36
			46.56	0.26	114.77	1391
			39.31	0.31	89.67	1087
			28.71	0.42	71.73	870
			24.23	0.5	57.39	696
		2	19.64	0.62	46.51	564
			14.66	0.82	36.63	444
			12.38	1	29.3	355
	6	3	62.37	0.13	230.59	2795	1.25	420	36
	6	3	46.56	0.17	168.79	2046	1.25	420	36
	8	3	62.37	0.1	308.06	3734	1.58	470	43
			46.56	0.13	229.94	2787
			39.31	0.16	194.14	2353
			28.71	0.21	143.47	1739
			24.23	0.25	114.77	1391
		2	19.64	0.31	91.58	1110
			14.66	0.41	73.26	888
			12.38	0.5	58.61	710
0.55/0.75	4	3	62.37	0.19	229.38	2780	1.45	420	49
			46.56	0.26	170.61	2068
			39.31	0.31	144.56	1752
			28.71	0.42	106.63	1293
			24.23	0.5	85.31	1034
		2	19.64	0.61	69.14	838
			14.66	0.82	54.45	660
			12.38	1	43.56	528
	6	3	62.37	0.13	328.1	3977	1.76	470	51
	6	3	46.56	0.17	250.9	3041	1.76	470	51
0.75/1.02	4	3	62.37	0.2	290.81	3525	2	420	49
			46.56	0.27	232.65	2820
			39.31	0.32	192.23	2330
			28.71	0.43	145.41	1763
			24.23	0.51	116.33	1410
		2	19.64	0.63	94.29	1143
			14.66	0.84	74.25	900
			12.38	1	59.4	720
	6	3	46.56	0.17	353.72	4288	2.23	470	51
1.10/1.50	2	3	62.37	0.4	213.26	2585	2.24	420	49
			46.56	0.54	170.61	2068
			39.31	0.63	133.29	1616
			28.71	0.87	106.63	1293
			24.23	1.03	85.31	1034
		2	19.64	1.26	69.14	838
			14.66	1.7	54.45	660
			12.38	2	43.56	528
	4	3	46.56	0.26	341.22	4136	2.83	470	51
			39.31	0.31	285.3	3458
			28.71	0.43	213.26	2585
			24.23	0.5	170.61	2068
		2	19.64	0.62	143.96	1745
			14.66	0.83	106.63	1293
			12.38	1	85.31	1034
1.50/ 2.04	4	3	28.71	0.43	280.74	3403	3.55	470	51
		3	24.23	0.51	232.65	2820
		2	19.64	0.63	188.57	2286
			14.66	0.84	148.5	1800
			12.38	1	118.8	1482
2.20/ 3.00	2	3	46.56	0.53	341.22	4136	4.33	470	51
			39.31	0.62	283.39	3435
			28.71	0.85	213.26	2585
			24.23	1	170.61	2068
		2	19.64	1.25	138.29	1676
			14.66	1.68	108.9	1320
			12.38	2	87.12	1056
At the min. face width (L), the total weight of a drum motor grows approx.4.0kg per 100 mm.

TM165H optional list-drum motor/idler pulley
Specifications	Drum motor	Idler pulley
Shell
Mild steel crowned	1	1
Mild steel cylindrical	2	2
Stainless steel(std. 304) crowned	2	2
Stainless steel(std. 304) cylindrical	2	2
End housing (front & rear)
Cast iron	1	1
Cast stainless steel	2	2
Shaft (front & rear)
Mild steel	1	1
Stainless steel(std. 304)	2	2
Gear box & rear flange
Cast iron	1	1
Rubber lagging
Hot vulcanized black smooth rubber lagging	2	2
White and blue rubber lagging in food quality	2	2
Urethane lagging	2	2
Sprockets for modular belting	2	2
V-grooves in the rubber lagging	3	3
Electrical motors
3-phase asynchronous motor	1
3*400V/50Hz	1
Dual voltage motor	2
Most common global voltages at 50 or 60 Hz	1
Thermal protection	1
Lubricating oil
No.150 gear oil	1
Low temperature oil	2
Food grade oil & grease (FDA and USDA)	2
Electrical connection
Straight cable connector	1
Elbow stainless steel cable connector	2
Terminal box connector	2
Oil resistant PVC cable	1
LS halogen-free cable	2
Screened cable (for VFD and brakes)	3
Other options
Mechanical backstop	2
Electromagnetic brake	2
Modified for vertical or angled mounting	3
Operation with VFD	2
Note:1-fitted as standard 2-optional extras 3-available as limited option but need to confirm with manufacturer

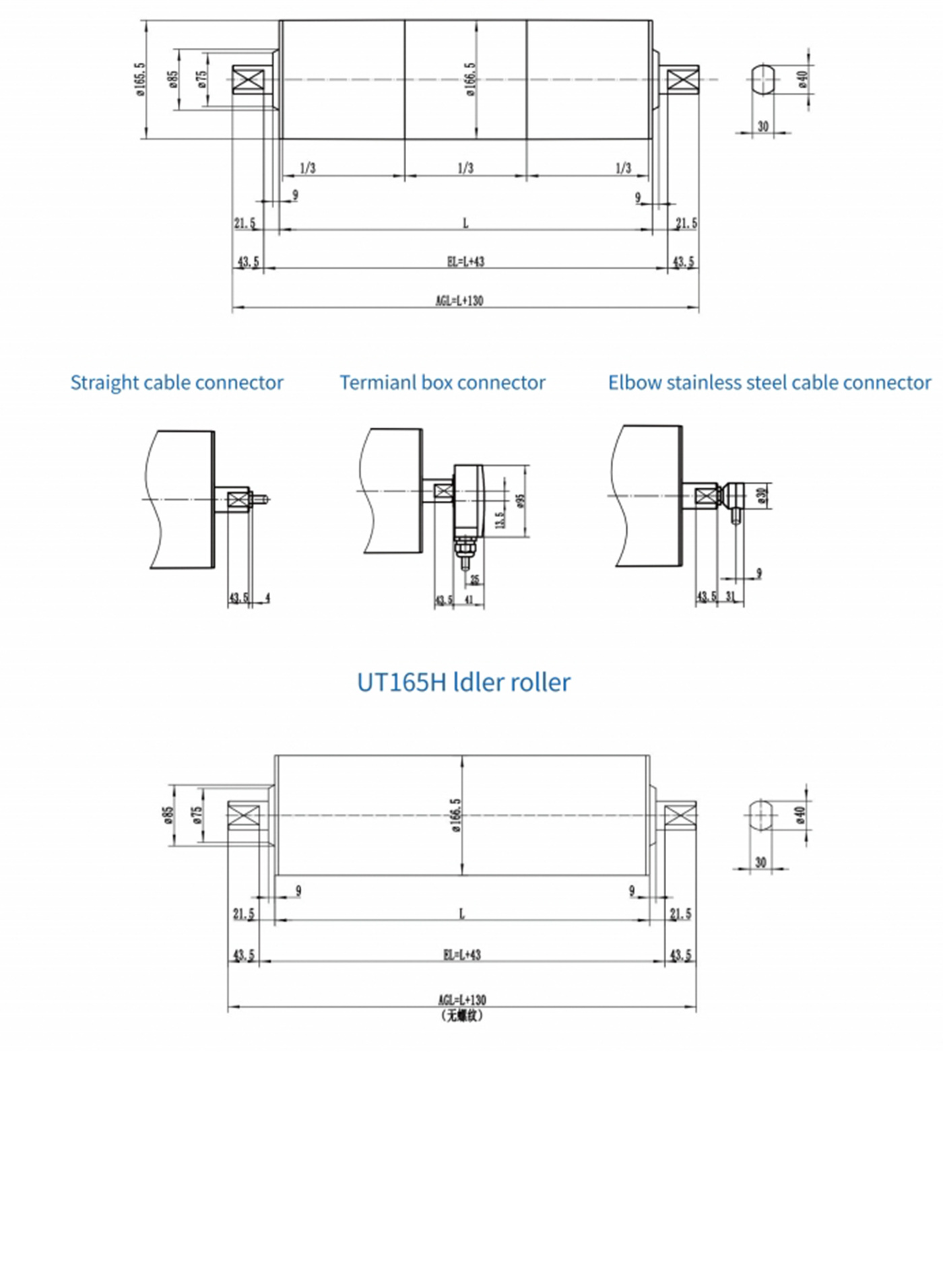

Standard Dimension

TM165H Drum motor
