Can be used for transportation of cardboard,cartons,barrels,or wheels,suitable for gravity or sliding conveyor roller lines.Can also be used as belt support rollers (non-tensioning or with crowned rollers,and with anti-static configura tion).Temperature range is:-5°C~+40℃ .
Extremely high reliability：This roller has extremely high functional reliability.
Low noise：Precision ball bearings,high polymer polymers,and seals can achieve extremely quiet operation.
Side loading：The labyrinth seal makes the roller have excellent dust and drip-proof performance.
Stable structure：The Tube end is designed with an inverted round shape,which can easily load materials from the side and eliminate axial forces through ball bearings and seals.
Anti-static design：The axial fixing of the non-drive side bearing assembly can be achieved in various ways,and the perfect closing radius can be added to achieve a stable structure.
Tube Data：φ50×1.5mm,material is Q235B or stainless steel 304
Shaft Data：φ14mm,11HEX,material is 45#or stainless steel 304
End Cap Data：high-strength nylon material
Seal Data：labyrinth seal,high-strength nylon material
Bearing Data：6002RZ,bearing steel or stainless steel
Processing Technology：internal and external threads,milling,spring pressing shaft surface knurling,punching,etc.
Load capacity |
||||||||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Installation Method |
Maximum static load (kg)for installation length (mm) |
|||||||
|
200 |
400 |
600 |
800 |
1000 |
1200 |
1400 |
1600 |
|||
|
φ50X1.5 |
11HEX |
Spring-loaded |
150 |
70 |
45 |
35 |
30 |
25 |
20 |
15 |
|
φ12 |
Spring-loaded / Internal thread |
150 |
85 |
55 |
40 |
35 |
30 |
25 |
20 |
|
|
φ14 |
Internal thread |
155 |
155 |
155 |
155 |
110 |
70 |
55 |
40 |
|
|
φ15 |
Internal thread |
155 |
155 |
155 |
155 |
110 |
70 |
55 |
40 |
|
|
φ60X2.0 |
11HEX |
Spring-loaded |
155 |
70 |
45 |
35 |
30 |
25 |
20 |
15 |
|
φ12 |
Spring-loaded / Internal thread |
165 |
80 |
50 |
40 |
35 |
30 |
25 |
20 |
|
|
φ14 |
Internal thread |
170 |
170 |
170 |
170 |
170 |
165 |
120 |
100 |
|
|
φ15 |
Internal thread |
170 |
170 |
170 |
170 |
170 |
165 |
120 |
100 |
|

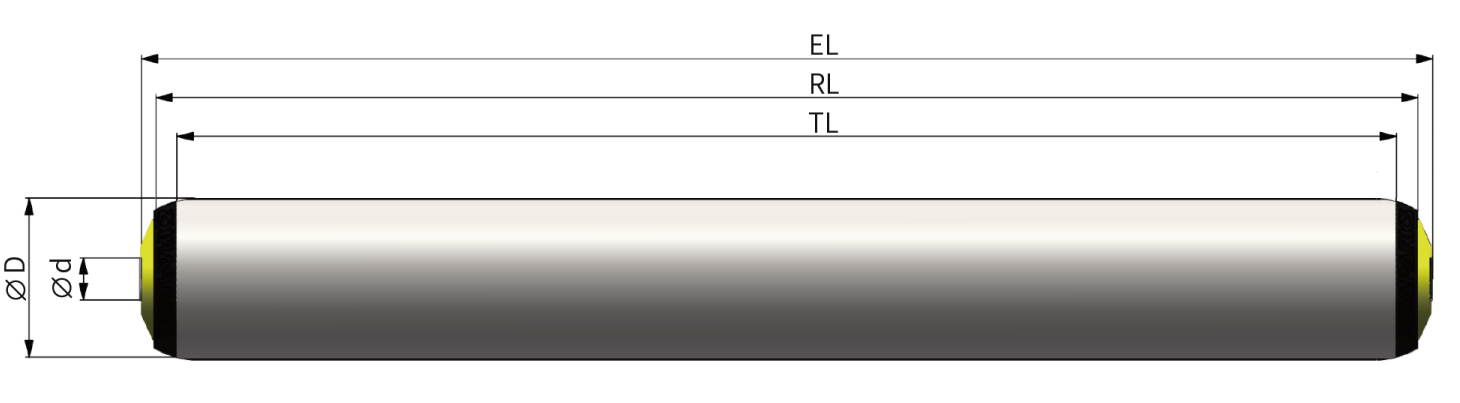

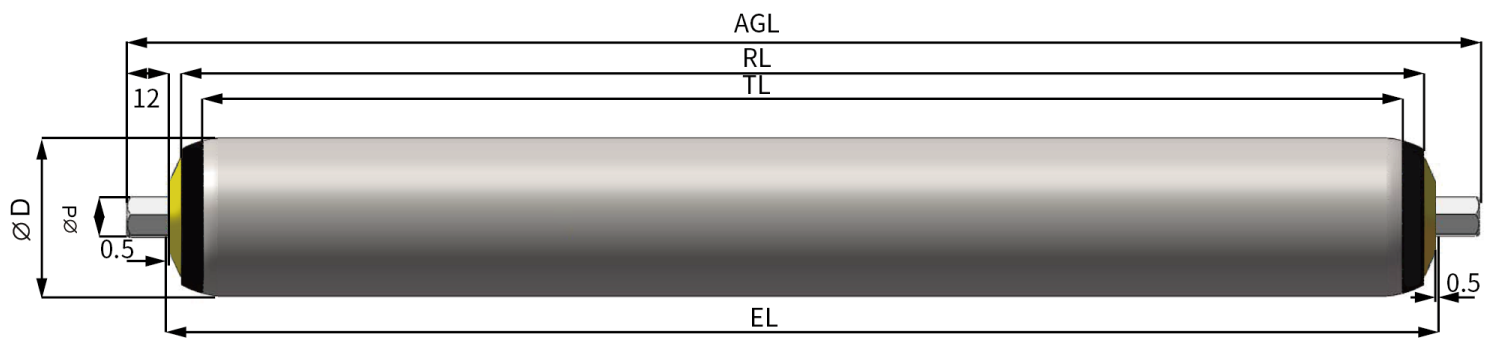

Dimensional drawing |
|||||
|
Ø Tube/thickness (mm) |
Ø Shaft (mm) |
Bearing model |
Installation method |
Dimensional relationship |
|
|
φ50X1.5 φ60X2.0 |
φ12 |
6002-2RZ |
Internal thread M8 |
RL=TL+13.6 |
EL=RL+9 |
|
φ14 |
6002-2RZ |
Internal thread M8 |
|||
|
φ15 |
6002-2RZ |
Internal thread M10 |
|||
Dimensional |
||||||
|
Ø Tube/thickness (mm) |
Ø Shaft (mm) |
Bearing model |
Installation method |
Dimensional relationship |
||
|
φ50X1.5 φ60X2.0 |
11HEX |
6002-2RZ |
Spring-loaded |
RL=TL+13.6 |
EL=RL+9 |
AGL=EL+23 |
|
φ12 |
6002-2RZ | Spring-loaded | ||||
