Low noise：using polyamide driving head can achieve extremely quiet operation;
Side loading：the tube end is designed with a rounded shape,which can easily load materials from the
side,and eliminate axial force through ball bearings and seals;
Effective dust and water resistance:the labyrinth seal makes the roller have excellent dust and water resistance;
Stable structure：based on the M170 and M350 ries,the cylindrical body is covere witl modular plastic cone sleeves (gray or black),which can realize the axial fixation of the non-driving side bearing component in multiple ways,and add perfect closure radius to achieve a stable structure.
Tube Data：φ50x1.5mm,material is Q235B or stainless steel 304.
Shaft Data：φ14mm,11HEX,material is 45#or stainless steel 304.
End cap Data：High-strength nylon material
Sealing Data： labyrinth seal,high-strength nylon material.
Bearing Data：6002RZ,material is bearing steel or stainless steel
Processing Technology： internal and external threads,milling,spring-pressed shaft,surface knurling,punching,etc.
Driven Mode:PolyVee head (PJ),sprocket (08B-14T),round belt.

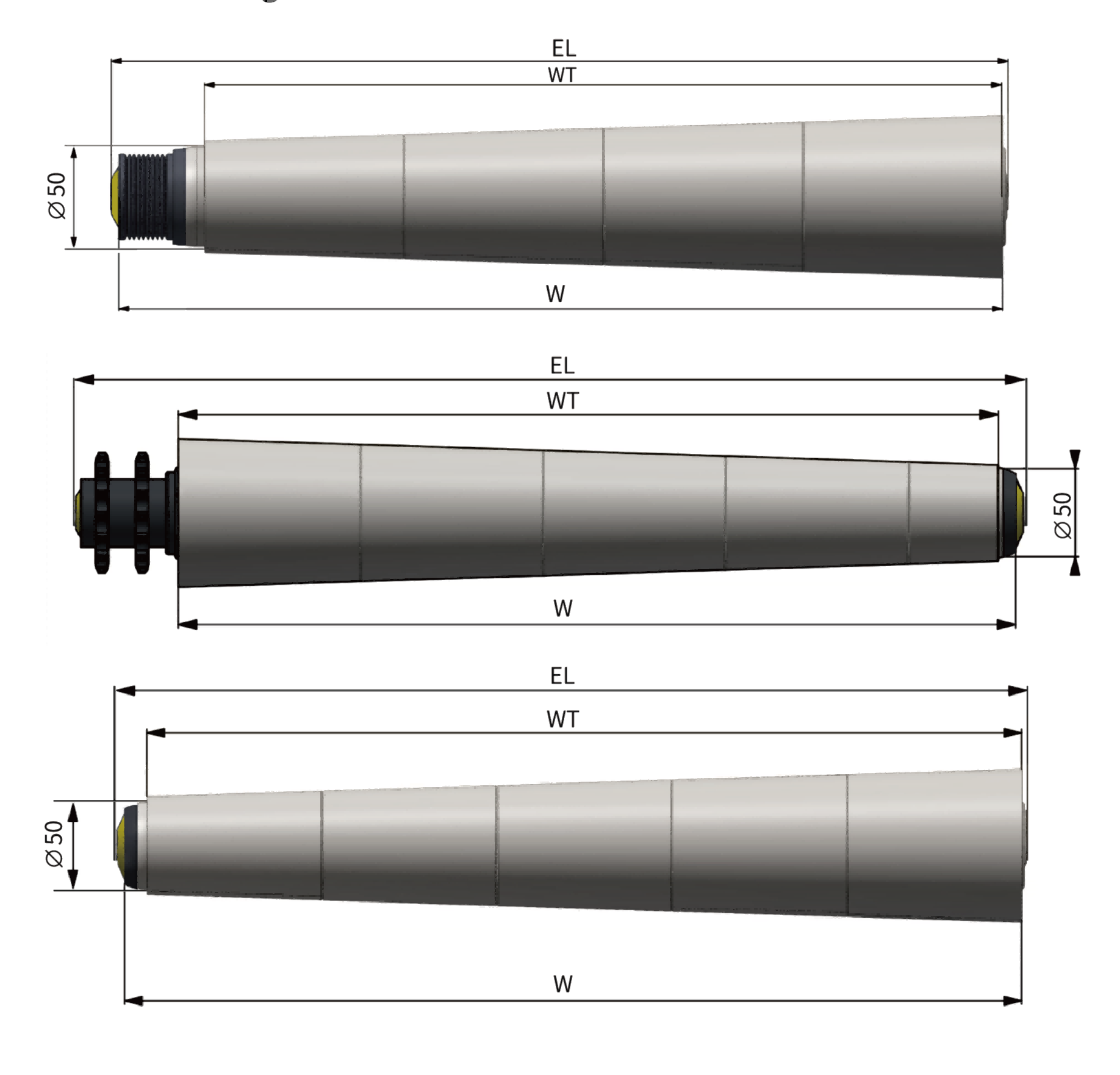

Dimensional |
|||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Bearing model |
Installation method |
Dimensional relationship |
|
| φ50X1.5 | 11HEX | 6002-2R7 | Spring-loadec | EL/RL/TL Size Reference M170 and M350 Series WT and W Refer to the table below |
EL=W+73
EL=W+34.1 (Multi-Wedge Head) EL=W+60.5 (Sprocket Head) EL=W+33.1 (Round Belt Head) |
| φ50X1.5 | φ12 | 6002-2R7 | pring Press Fit, Internal Thread M8 |
||
| φ50X1.5 | φ14 | 6002-2R7 |
Internal Thread M8 |
||
| φ50X1.5 | φ15 | 6002-2R7 | Internal Thread M10 |
||
|
W |
W T ( 非 精 确 值 ) |
D1 |
D2 |
| 300-349 | 300 | 56.06 | 74.79 |
| 350-399 | 350 | 52.89 | 74.79 |
| 400-449 | 400 | 56.06 | 81.08 |
| 450-499 | 450 | 52.89 | 81.08 |
| 500-549 | 500 | 56.06 | 87.36 |
| 550-599 | 550 | 52.89 | 87.36 |
| 600-649 | 600 | 56.06 | 93.65 |
| 650-699 | 650 | 52.89 | 93.65 |
| 700-749 | 700 | 56.06 | 99.93 |
| 750-799 | 750 | 52.89 | 99.93 |
| 800-849 | 800 | 56.06 | 106.22 |
| 850-899 | 850 | 52.89 | 106.22 |
| 900-949 | 900 | 56.06 | 112.5 |
| 950-1000 | 950 | 52.89 | 112.5 |
| Serial no | Item | Content | Content description |
Remarks |
| 1 | Model Code | M350 | M:Medium-duty roller,max load 20~300kg |
L:Light-duty roller,max load 5~18kg M:Medium-duty roller,max load 20~300kg H:Heavy-duty roller,max load 240~500kg 1:Non-driven head roller; 3:Driven head roller Product series codes used in different fields, including 10/20/50/70/80,etc. |
| 2 | Cylinder Specifications |
5015SS |
5015:Roller diameter and wall thickness |
SS:Stainless Steel - 3812/5015/5020/6015/6020/7630/8030/893C PA:Plastic(PVC)-3815/5025 ZP:Carbon Steel (Q235-B)- 3812/5015/5020/6015/6020/7630/8030/8930 |
| 3 |
Axle Specifi- cations |
14SS |
14:Axle Diameter SS:Stainless Steel |
SS:Stainless Steel(304)-10/11/12/14/15/2( (11 refers to hexagonal axle) ZP:Carbon Steel (Q235-B)-10/11/12/14/15/20 (11 refers to hexagonal axle) |
| 4 | Installation Methods |
A | A:Internal Thread | A-Internal Thread B-Spring Press-fit C-Milling Flat Z-Other |
| 5 | Types of Drive Heads |
2PAX2 | 2:Drive Head Type PA:Drive Head Material X2:Double-End Drive |
1:Multiple V-Belt Head PA/SS/ZP 2:Chain Sprocket Head PA/SS/ZP 3:Round Belt Head PA 4:Timing Belt Head PA/ZP If single-end drive,no X2 If no drive head,leave this item blank. |
| 6 | Special Customiza- tion for Drive Head |
13T | 13T:Number of teeth for sprocket wheel |
lf there is any special customization for the drive head,please provide the information. Leave it blank if using the standard drive head, refer to the catalog for standard specifications. |
| 7 | Other Customiza- tion |
PU | PU:2mm thick black PU coating | 2mm PU/PVC coating or other special types of coating with different thickness. |
| 8 | Installation Size |
EL1000 | EL=1000MM | When selecting,the EL value should be 1mm smaller than the actual width of the frame. |
