Suitable for handling and conveying paperboard,cartons,drums,or tires with a driven device,within the temperature range of-5°C~+40℃ .
Low noise：Using a polyamide drive head can achieve extremely quiet opera.
Side loading：The tube end is designed with a rounded shape,making it easy to load materials from the side and eliminating axial forces through ball bearings and seals..
Effective dust and water resistance：The labyrinth seal makes the roller excellent at dust and water droplet resistance.
Stable structure：The non-driven side bearing assembly can be axially fixed in multiple ways,with perfect closure radius added to achieve a sturdy structure for the produc.
Stable structure：The insertable polyamide drive head can achieve the interchangeability of sprocket and timing belt.
Tube Data：φ50x1.5mm,material is Q235B or stainless steel 304.
Shaft Data：φ14mm,11HEX,material is Q235B or stainless steel 304.
End cap Data：High-strength nylon material.
Seal Data： Labyrinth seal,high-strength nylon material.
Bearing Data： 6002 RZ,material is bearing steel or stainless steel.
Processing technology：internal and external threads,milling,spring-pressed shaft,surface knurling,drilling,etc.

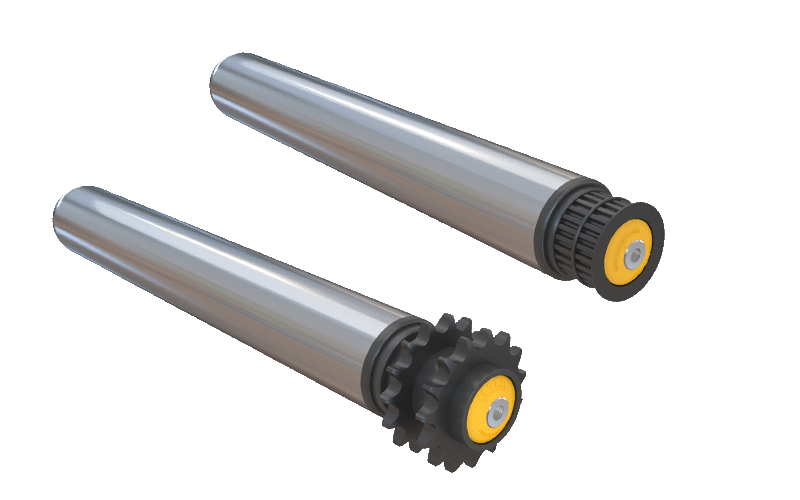

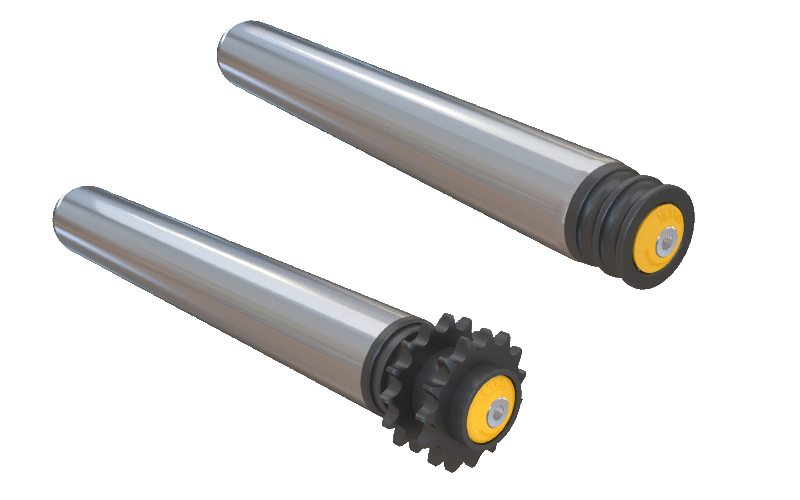

Drive mode：PolyVee head (PJ type),sprocket (08B-14T),round belt,timing belt (T5-26,width 10mm).
Load capacity |
||||||||||
| Ø Tube /thickness (mm) |
Ø Shaft (mm） |
Installation Method | Maximum static load (kg)for installation length (mm) | |||||||
| 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | |||
| φ50X1.5 | 11HEX | Spring-loaded | 150 | 70 | 45 | 35 | 30 | 25 | 20 | 15 |
| φ12 |
Spring-loaded / Internal Thread |
150 | 85 | 55 | 40 | 35 | 30 | 25 | 20 | |
| φ14 | Internal thread | 155 | 155 | 155 | 155 | 110 | 70 | 55 | 40 | |
| φ15 | Internal thread | 155 | 155 | 155 | 155 | 110 | 70 | 55 | 40 | |
| φ60X2.0 | 11HEX | Spring-loaded | 155 | 70 | 45 | 35 | 30 | 25 | 20 | 15 |
| φ12 |
Spring-loaded / Internal Thread |
165 | 80 | 50 | 40 | 35 | 30 | 25 | 20 | |
| φ14 | Internal thread | 170 | 170 | 170 | 170 | 170 | 165 | 120 | 100 | |
| φ15 | Internal thread | 170 | 170 | 170 | 170 | 170 | 165 | 120 | 100 | |

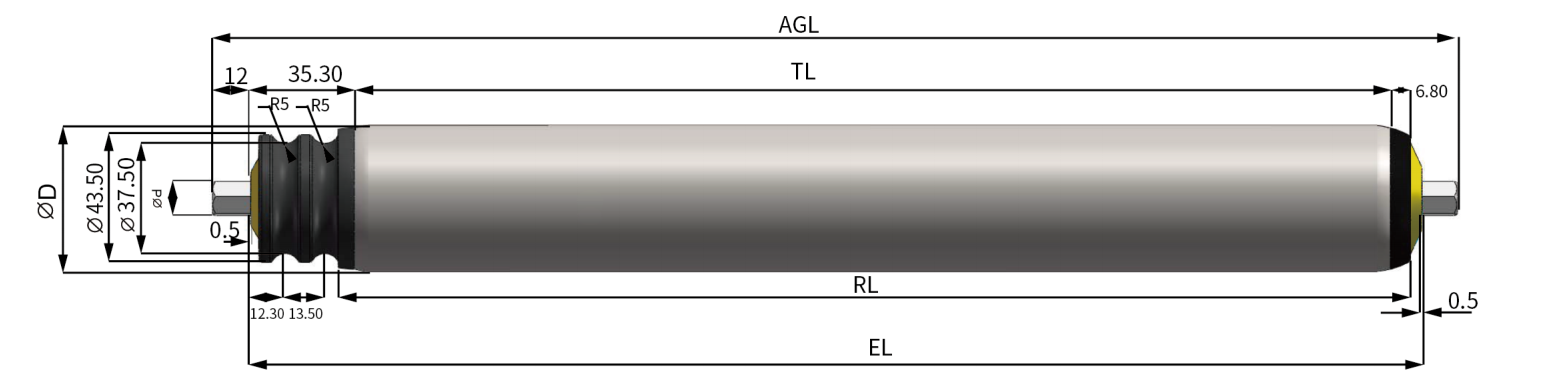

Dimensional |
||||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Bearing model |
Installation method |
Dimensional relationship |
||
|
φ50X1.5 |
11HEX |
6002-2RZ |
Spring-loaded |
RL=TL+12.8 |
EL=RL+35.8 |
AGL=EL+23 |
|
φ12 |
6002-2RZ |
Spring-loaded |
||||

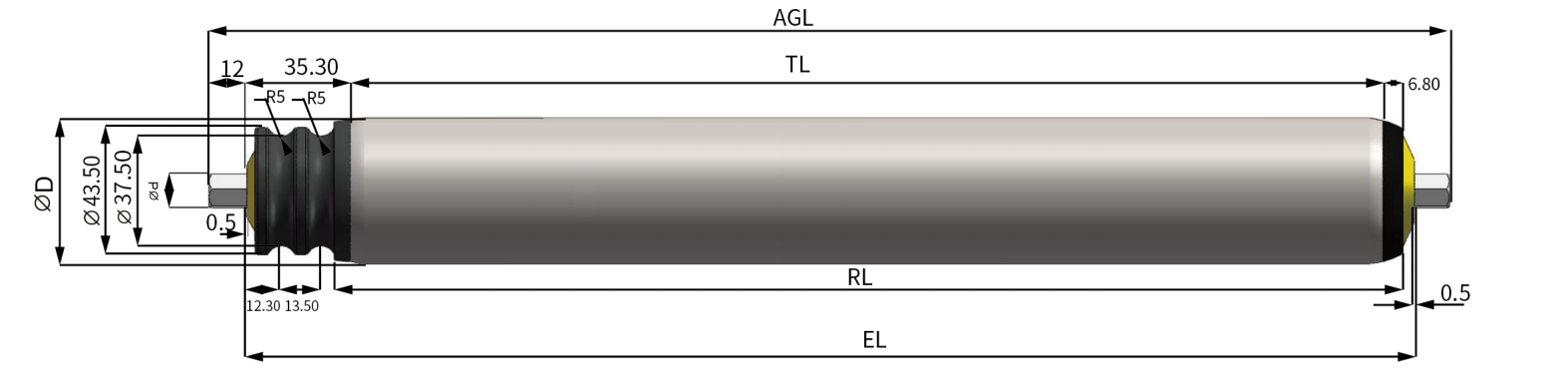

Dimensional |
||||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Bearing model |
Installation method |
Dimensional relationship |
||
|
φ50X1.5 φ60X2.0 |
11HEX |
6002-2RZ |
Spring-loaded |
RL=TL+11.8 |
EL=RL+59 |
AGL=EL+23 |
|
φ12 |
6002-2RZ |
Spring-loaded |
||||

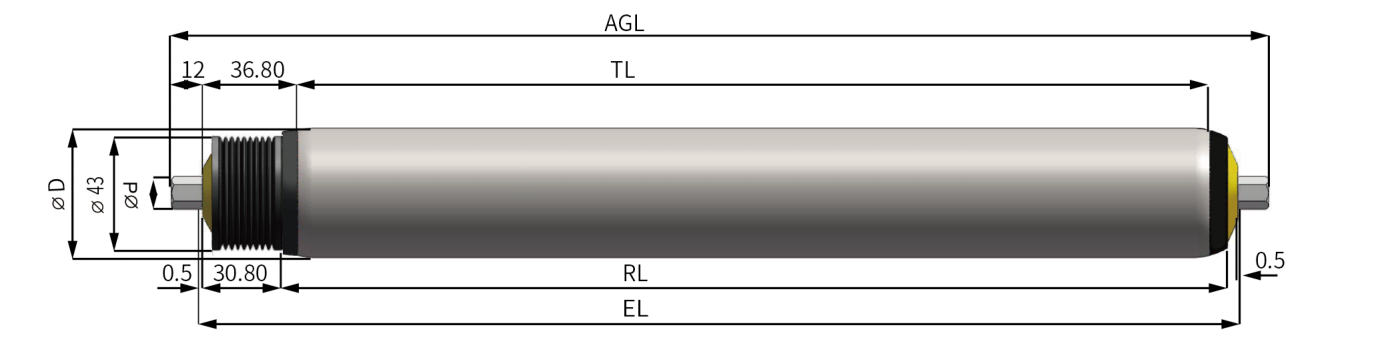

Dimensional |
||||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Bearing model |
Installation method |
Dimensional relationship |
||
|
φ50X1.5 φ60X20 |
11HEX |
6002-2RZ |
Spring-loaded |
RL=TL+12.3 |
EL=RL+34.8 |
AGL=EL+23 |
|
φ12 |
6002-2RZ |
Spring-loaded |
||||

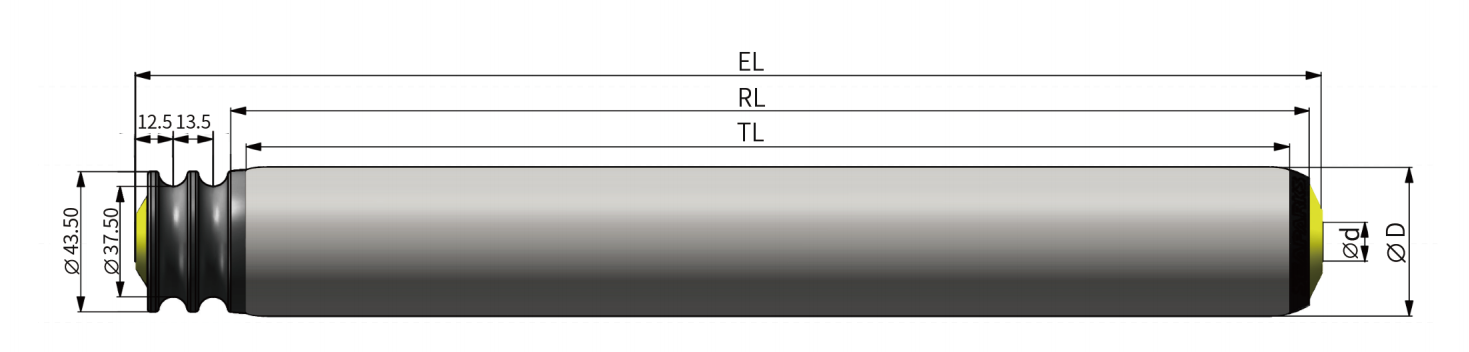

Dimensional |
|||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Bearing model |
Installation method |
Dimensional relationship |
|
|
φ50X1.5 |
φ12 |
6002-2RZ |
Internal Thread |
RL=TL+12.8 |
EL=RL+35.8 |
|
φ14 |
6002-2RZ |
Internal Thread |
|||
|
φ15 |
6002-2RZ |
Internal Thread |
|||
Dimensional |
|||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Bearing model |
Installation method |
Dimensional relationship |
|
|
φ50X1.5 φ60X2.0 |
φ12 |
6002-2RZ |
Internal Thread |
RL=TL+11.8 |
EL=RL+59 |
|
φ14 |
6002-2RZ |
Internal Thread |
|||
|
φ15 |
6002-2RZ |
Internal Thread |
|||

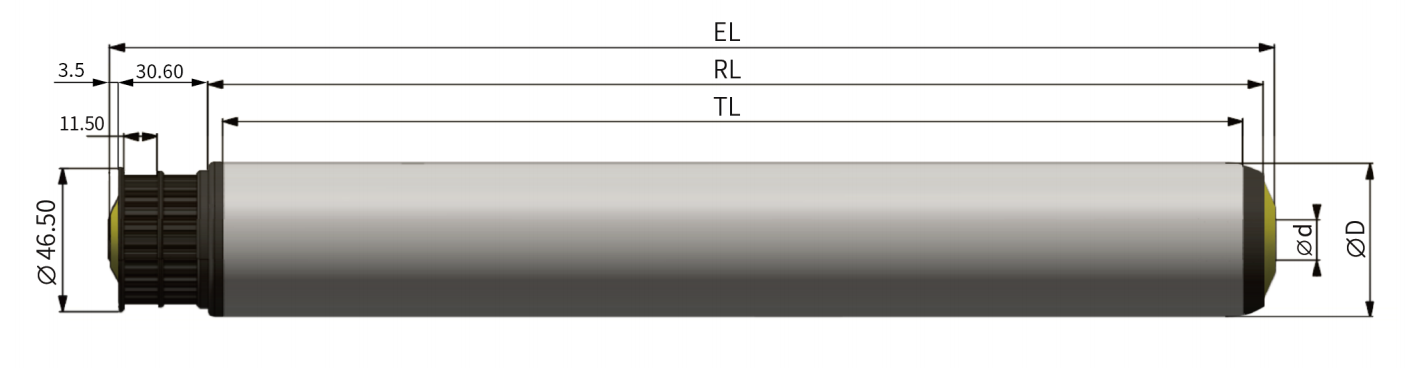

Dimensional |
|||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Bearing model |
Installation method |
Dimensional relationship |
|
|
φ50X1.5 |
φ12 |
6002-2RZ |
Internal Thread |
RL=TL+12.3 |
EL=RL+34.8 |
|
φ14 |
6002-2RZ |
Internal Thread |
|||
|
φ15 |
6002-2RZ |
Internal Thread |
|||

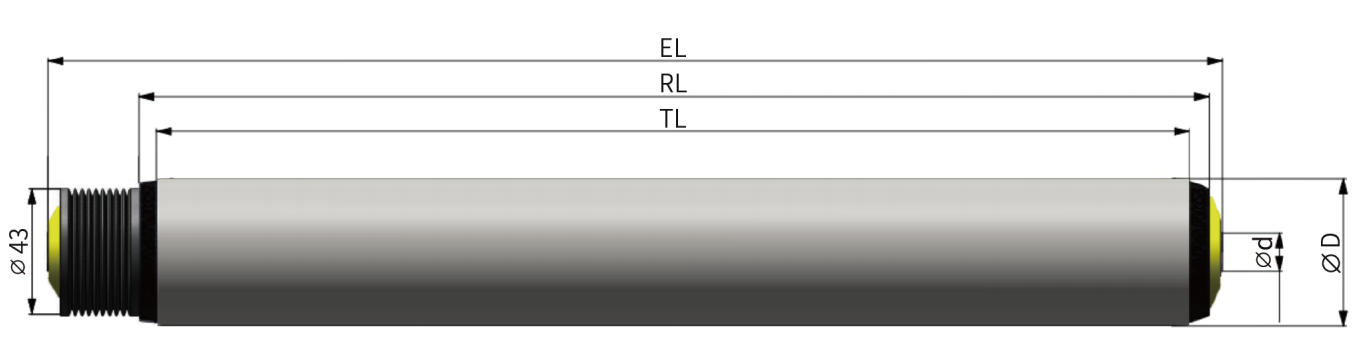

Dimensional |
|||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Bearing model |
Installation method |
Dimensional relationship |
|
|
φ50X1.5 |
φ12 |
6002-2RZ |
Internal Thread |
RL=TL+11.8 |
EL=RL+38.6 |
|
φ14 |
6002-2RZ |
Internal Thread |
|||
|
φ15 |
6002-2RZ |
Internal Thread |
|||
