Gravity Conveyor Rollers Series H120

lt can be used for transport such as cardboard,containers,drums or tyres,for gravity or sliding conveyor roller lines, and for belt conveyoridlers (non-tensioned or angled positions).Versions with steel housings are designed for low temperature or high ambient temperature applications,suitable for ambient temperature range:-30°℃~+80℃ .

Extremely highreliability：The requirements for the use environment are not high,and both high and low temperatures can operate well.
Low noise：Precision ball bearings are fixed in steel stamped housings for quieter operation.
Side loading：The tube end is rounded for easy loading from the side,eliminating axial forces through ball bearings.
Stable structure：The axial fixation of the non-driving side bearing assembly can be realized in a variety of ways, and the perfect closing arc can be added to achieve a stable structure of the product.
Anti-static design：All series are anti-static.

Load capacity
ØTube/ thickness (mm)	Ø Shaft (mm)	Installation Method	Maximum static load (kg) for installation length (mm)
ØTube/ thickness (mm)	Ø Shaft (mm)	Installation Method	200	800	1000	1200	1400	1600	1800	2000
φ76X3	φ20	Internal thread	500	500	500	500	450	345	270	220
φ80X3	φ20	Internal thread	500	500	500	500	450	345	270	220
φ89X3	φ20	Internal thread	500	500	500	500	450	480	380	305

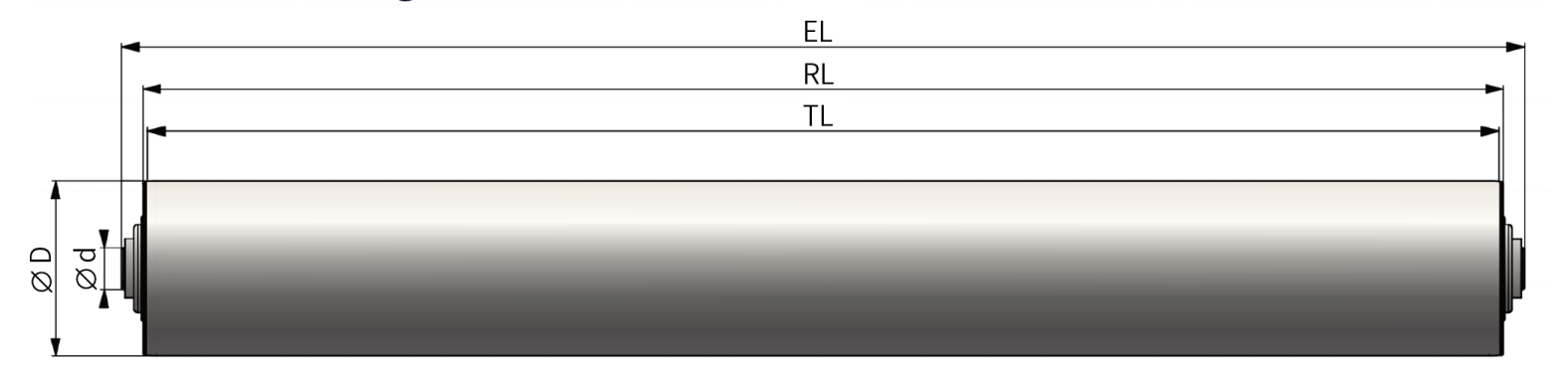

Dimensional drawing
Ø Tube/ thickness (mm)	Ø Shaft (mm)	Bearing model	Installation method	Dimensional relationship
φ76X3	φ20	6204-Z	Internal thread M12	RL=TL+4	EL=RL+12
φ80X3	φ20	6204-Z	Internal thread M12	RL=TI+4	EL=RL+12
φ89X3	φ20	6204-Z	Internal thread M12	RL=TL+4	EL=RL+12
