Sturdy structure：The roller has a particularly stable and sturdy structure,and the chain wheel is made of steel and permanently welded.
Multiple drive types：Multiple chain wheel heads are available,and you can choose to use chain or tangen tial chain drive between the rollers.
Side loading:The end of the Tube is designed with a rounded shape,which allows easy loading of materials from the side,and eliminates axial force through ball bearings and seals.
Tube Data：φ80x3mm,φ89x3mm,material is Q235B or stainless steel 304
Shaft Data：φ20mm,material is 45#or stainless steel 304
End cap Data：High-strength nylon material
Bearing Data：6205RZ,material is bearing steel or stainless steel
Processing technology：Internal and external threads,milling,surface knurling,punc hing,etc.
Drive mode：10B15T,10B 18T,double chain wheel.
Load capacity |
||||||||||
| Ø Tube /thickness (mm) |
Ø Shaft (mm） |
Installation Method | Maximum static load (kg)for installation length (mm) | |||||||
| 200 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | |||
| φ80X3 | φ20 | Internal thread | 500 | 500 | 500 | 500 | 450 | 345 | 270 | 220 |
| φ89X3 | φ20 | Internal thread | 500 | 500 | 500 | 500 | 500 | 480 | 380 | 305 |

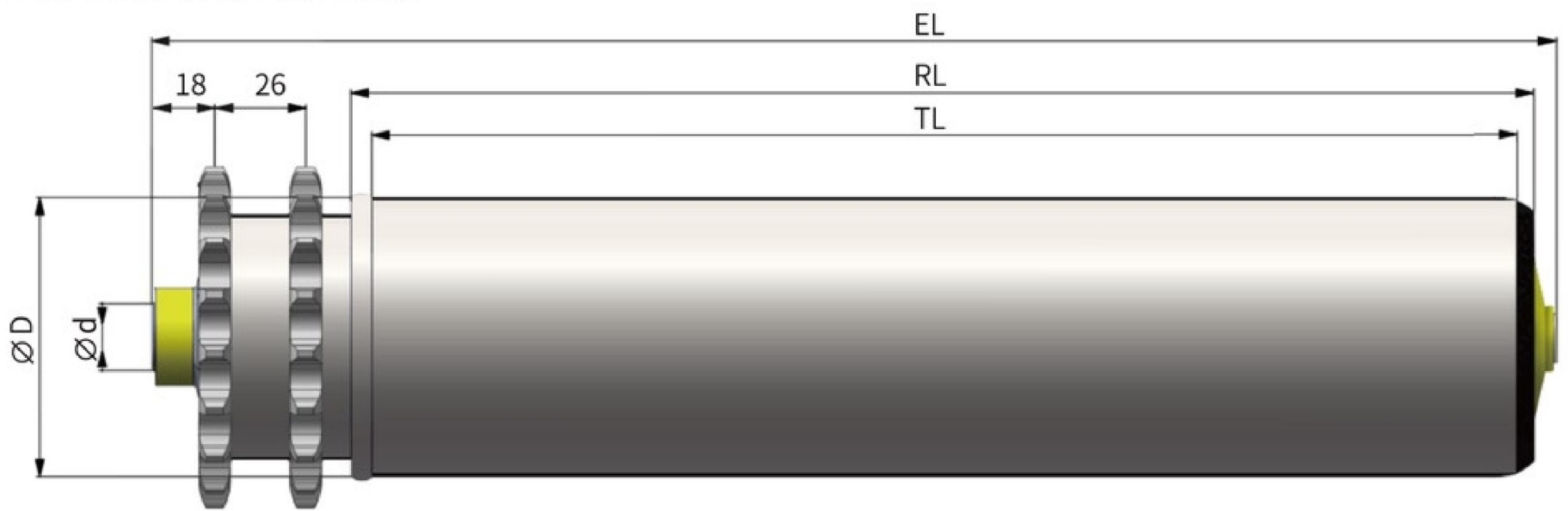

Dimensional |
|||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Bearing model |
Installation method |
Dimensional relationship |
|
| φ80X3 | φ20 | 6205-2R7 | Internal thread | RL=TL+9 | EL=RL+62 |
| φ89X3 | φ20 | 6205-2R7 | Internal thread | RL=TL+8 | EL=RL+62.5 |
