TM216F asynchronous oil immersed drum motor,It is a heavy roller designed for conveying single heavy items or bulk materials,Its power range is 0.37kw to 4.0kw,all stainless steel material can meet the strict requirements of sanitary and humid environment.This kind of drum motor is typically used in:
Motor type：Asychronous, AC, 3 phase
Key words：Belt drive, Oil-filled
Tag：Hygiene, Lagging
AMROLL Drum Motor TM216F-3 *400V/50Hz |
|||||||||
| Power [kW/hp] |
No.of poles |
Gear stages |
Gear ratio |
Nominal belt speed [m/s] |
Full load torque [Nm] |
Full load belt pull [N] |
Full load current [A] |
Min. face width (L) [mm] |
Min.L Weight [kg] |
| 0.37/0.50 | 8 | 3 | 77.33 | 0.11 | 375.62 | 3478 | 1.64 | 510 | 56 |
| 63.18 | 0.13 | 288.94 | 2675 | ||||||
| 48.58 | 0.17 | 234.77 | 1274 | ||||||
| 41.26 | 0.2 | 187.81 | 1739 | ||||||
| 31.73 | 0.26 | 150.25 | 1391 | ||||||
| 2 | 24.61 | 0.34 | 119.88 | 1110 | |||||
| 20.11 | 0.42 | 95.9 | 888 | ||||||
| 15.46 | 0.54 | 76.72 | 710 | ||||||
| 0.55/0.75 | 8 | 3 | 77.33 | 0.1 | 558.36 | 5170 | 1.67 | 510 | 58 |
| 63.18 | 0.13 | 429.51 | 3977 | ||||||
| 48.58 | 0.16 | 348.98 | 3231 | ||||||
| 41.26 | 0.19 | 279.18 | 2585 | ||||||
| 31.73 | 0.25 | 223.34 | 2068 | ||||||
| 2 | 24.61 | 0.32 | 178.2 | 1650 | |||||
| 20.11 | 0.4 | 142.56 | 1320 | ||||||
| 15.46 | 0.51 | 114.05 | 1056 | ||||||
| 0.75/1.02 | 8 | 3 | 63.18 | 0.13 | 585.69 | 5423 | 2.38 | 510 | 58 |
| 48.58 | 0.16 | 475.88 | 4406 | ||||||
| 41.26 | 0.19 | 380.7 | 3525 | ||||||
| 31.73 | 0.25 | 304.56 | 2820 | ||||||
| 2 | 24.61 | 0.32 | 243 | 2250 | |||||
| 20.11 | 0.4 | 194.4 | 1800 | ||||||
| 15.46 | 0.51 | 155.52 | 1440 | ||||||
| 1.10/1.50 | 4 | 3 | 77.33 | 0.21 | 558.36 | 5179 | 2.27 | 510 | 58 |
| 63.18 | 0.26 | 446.69 | 4136 | ||||||
| 48.58 | 0.34 | 348.98 | 3231 | ||||||
| 41.26 | 0.4 | 279.18 | 2585 | ||||||
| 31.73 | 0.52 | 228.1 | 2112 | ||||||
| 2 | 24.61 | 0.67 | 181.03 | 1676 | |||||
| 20.11 | 0.82 | 142.56 | 1320 | ||||||
| 15.46 | 1.1 | 114.05 | 1056 | ||||||
| 6 | 3 | 63.18 | 0.17 | 670.87 | 6212 | 2.86 | 510 | 61 | |
| 48.58 | 0.22 | 558.36 | 5179 | ||||||
| 41.26 | 0.26 | 446.69 | 4136 | ||||||
| 31.73 | 0.34 | 348.98 | 3231 | ||||||
| 2 | 24.61 | 0.44 | 279.18 | 2585 | |||||
| 20.11 | 0.54 | 228.1 | 2112 | ||||||
| 15.46 | 0.7 | 181.03 | 1676 | ||||||
| 1.50/2.04 | 4 | 3 | 63.18 | 0.26 | 609.12 | 5640 | 2.87 | 510 | 61 |
| 48.58 | 0.34 | 475.88 | 4406 | ||||||
| 41.26 | 0.4 | 380.7 | 3525 | ||||||
| 31.73 | 0.52 | 304.56 | 2820 | ||||||
| 2 | 24.61 | 0.66 | 246.86 | 2285 | |||||
| 20.11 | 0.81 | 194.4 | 1800 | ||||||
| 15.46 | 1.1 | 155.52 | 1440 | ||||||
| 2.20/3.00 | 4 | 3 | 48.58 | 0.34 | 698 | 6463 | 4.86 | 510 | 62 |
| 41.26 | 0.4 | 558.36 | 5170 | ||||||
| 31.73 | 0.52 | 446.69 | 4136 | ||||||
| 2 | 24.61 | 0.66 | 362.06 | 3352 | |||||
| 20.11 | 0.81 | 285.12 | 2640 | ||||||
| 15.46 | 1.1 | 228.1 | 2112 | ||||||
| 3.50/4.76 | 4 | 3 | 31.73 | 0.52 | 609.12 | 5640 | 7.69 | 510 | 73 |
| 2 | 24.61 | 0.67 | 475.88 | 4406 | |||||
| 20.11 | 0.81 | 380.7 | 3525 | ||||||
| 15.46 | 1.1 | 304.56 | 2820 | ||||||
| 4.00/5.44 | 2 | 3 | 41.26 | 0.8 | 507.6 | 4700 | 8.63 | 510 | 73 |
| 31.73 | 1 | 406.08 | 3760 | ||||||
| 2 | 24.61 | 1.32 | 329.14 | 3048 | |||||
| 20.11 | 1.6 | 259.2 | 2400 | ||||||
| 15.46 | 2.1 | 207.36 | 1920 | ||||||
| At the min. face width (L), the total weight of a drum motor grows approx.5kg per 100 mm. | |||||||||

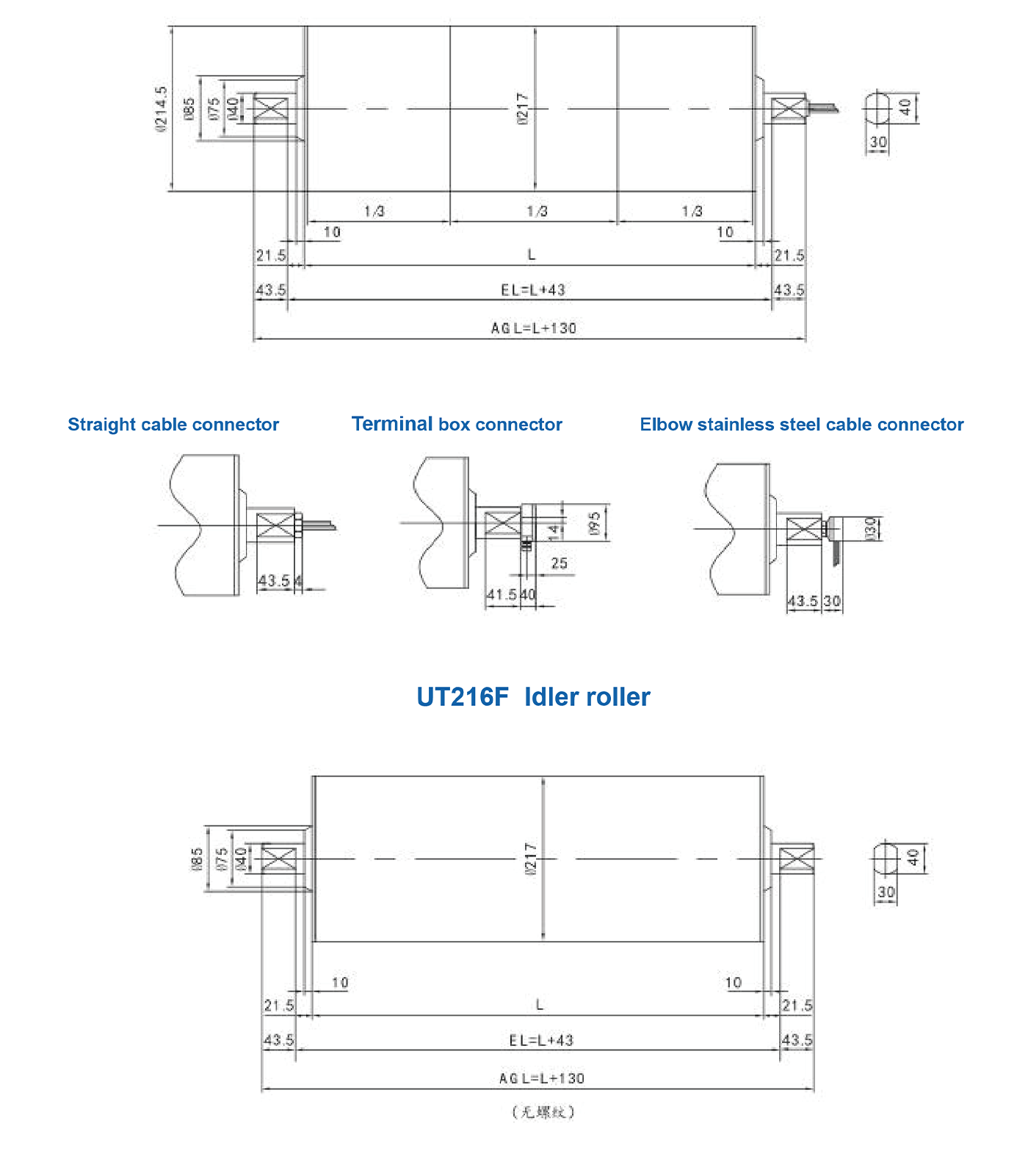

TM216F optional list-drum motor/idler pulley |
||
| Specifications | Drum motor | Idler pulley |
| Shell | ||
| Stainless steel(std. 304) crowned | 1 | 1 |
| Stainless steel(std. 304) cylindrical | 2 | 2 |
| Stainless steel(std. 304) cylindrical+ key | 2 | 2 |
| End housing (front & rear) | ||
| Cast stainless steel(std. 304) | 1 | 1 |
| Shaft (front & rear) | ||
| Stainless steel(std. 304) | 1 | 1 |
| Rubber lagging | ||
| Hot vulcanized black smooth rubber lagging | 2 | 2 |
| White and blue rubber lagging in food quality | 2 | 2 |
| Urethane lagging | 2 | 2 |
| Sprockets for modular belting | 2 | 2 |
| V-grooves in the rubber lagging | 3 | 3 |
| Electrical motors | ||
| 3-phase asynchronous motor | 1 | |
| 3*400V/50Hz | 1 | |
| Dual voltage motor | 2 | |
| Most common global voltages at 50 or 60 Hz | 1 | |
| Thermal protection | 1 | |
| Lubricating oil | ||
| Food grade oil (FDA and USDA) | 2 | |
| Electrical connection | ||
| Straight cable connector | 1 | |
| Elbow stainless steel cable connector | 2 | |
| Terminal box connector | 3 | |
| Oil resistant PVC cable | 1 | |
| LS halogen-free cable | 2 | |
| Screened cable (for VFD and brakes) | 3 | |
| Other options | ||
| Mechanical backstop | 2 | |
| Electromagnetic brake | 2 | |
| Modified for vertical or angled mounting | 3 | |
| Operation with VFD | 2 | |
|
Note:1-fitted as standard 2-optional extras 3-available as limited option but need to confirm with manufacturer |
||
