Amroll Drum Motor--TM80F

TM80F asynchronous oil immersed drum motor,The design is based on the space limitation requirement of conveying equipment and the high efficiency application of transmission system.All stainless steel material can meet the strict requirements of sanitary and humid environment.This kind of drum motor is typically used in:

Food processing conveyor
Pharmaceutical packaging
Belt conveyors

Motor type：Asychronous, AC, 1&3 phase
Key words：Belt drive, Oil-filled
Tag：Hygiene, Lagging

Description
Additional information

Drum motor shell

●Stainless steel crowned shell treated with anti-rust oil
●The standard shell is coronal and the surface is machined with non-slip threads

Gear transmission

●Gears machined and honed to AGMA/DIN 6 standards to ensure low noise

Motor

●Common global voltages at 50 Hz or 60 Hz
●AC asynchronous motor
●Motor windings insulation class F
●All motors with thermal protection
●Oil cooled electrical motor
●Cable length minimum 1.2 meters outside shaft

Sealing system

●Double shaft sealing system
●Sealing system-degree of protection IP 66/67

Oil

●Pre lubricated with oil
●Oil change recommended every 50,000 hours of operation

Other items

●Electromagnetic brakes are optional,but the length of the shell will be lengthened accordingly
●Belt speed and face width (L) on request
●International authority CE and UL safety certification
●Non-standard drum motors are available on request.

AMROLL Drum Motor TM80F-1*230V/50Hz
Power [kW/hp]	No.of poles	Gear stages	Gear ratio	Nominal belt speed [m/s]	Full load torque [Nm]	Full load belt pull [N]	Full load current [A]	Min. face width (L) [mm]	Min.L Weight [kg]
0.034/ 0.045	4	3	74.79	0.08	16.41	400	0.48	320	6
			55.11	0.10	13.11	320
			37.89	0.15	8.73	214
		2	28.95	0.20	6.55	160
			21.33	0.27	4.85	118
			14.67	0.40	3.28	80
			11.81	0.50	2.62	64
0.06/0.08	2	3	74.79	0.15	15.42	391	0.57	320	5
			55.11	0.20	11.01	269
			37.89	0.30	7.71	188
		2	28.95	0.39	5.91	142
			21.33	0.52	4.37	104
			14.67	0.76	2.95	71
			11.81	0.95	2.36	56
0.085/ 0.115	2	3	74.79	0.16	19.28	489	0.66	350	6
			55.11	0.22	13.77	336
			37.89	0.32	9.63	236
		2	28.95	0.41	7.38	177
			21.33	0.56	5.46	131
			14.67	0.81	3.69	89
			11.81	1.01	2.96	71
0.11/0.15	2	3	55.11	0.22	22.02	538	0.99	350	6
		3	37.89	0.32	15.42	376
		2	28.95	0.42	11.82	284
			21.33	0.56	8.74	208
			14.67	0.82	5.90	142
			11.81	1.02	4.72	112
At the min. face width (L), the total weight of a drum motor grows approx.1.2 kg per 100 mm.

*AMROLL Drum Motor TM80F-3 400V/50Hz**
Power [kW/hp]	No.of poles	Gear stages	Gear ratio	Nominal belt speed [m/s]	Full load torque [Nm]	Full load belt pull [N]	Full load current [A]	Min. face width (L) [mm]	Min.L Weight [kg]
0.04/0.05	4	3	74.79	0.08	18.00	450	0.43	310	6
			55.11	0.10	14.40	360
			37.89	0.15	9.60	240
0.06/0.08	2	3	74.79	0.15	19.28	489	0.30	310	5
			55.11	0.20	13.77	336
			37.89	0.30	9.63	236
		2	28.95	0.39	7.38	177
			21.33	0.52	5.46	131
			14.67	0.76	3.69	89
			11.81	0.95	2.96	71
	4	3	55.11	0.10	28.91	705	0.36	320	6
	4	3	37.89	0.15	19.27	470	0.36	320	6
0.09/0.12	2	3	74.79	0.16	23.13	587	0.43	350	6
			55.11	0.22	16.52	403
			37.89	0.32	11.56	283
		2	28.95	0.41	8.86	212
			21.33	0.56	6.55	157
			14.67	0.82	4.43	106
			11.81	1.01	3.55	85
0.12/0.16	2	3	55.11	0.22	22.02	538	0.53	350	6
		3	37.89	0.32	15.42	376
		2	28.95	0.42	11.82	284
			21.33	0.56	8.74	208
			14.67	0.82	5.90	142
			11.81	1.02	4.72	112
At the min. face width (L), the total weight of a drum motor grows approx.1.2 kg per 100 mm.

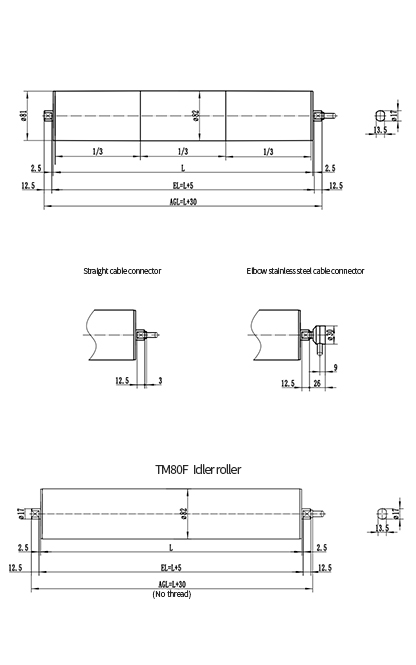

TM80F optional list-drum motor/idler pulley
Specifications	Drum motor	Idler pulley
Shell
Stainless steel(std. 304) crowned	1	1
Stainless steel(std. 304) cylindrical	2	2
Stainless steel(std. 304) cylindrical+ key	2	2
End housing (front & rear)
Cast stainless steel(std. 304)	1	1
Shaft (front & rear)
Stainless steel(std. 304)	1	1
Electrical motors
1 or 3-phase asynchronous motor	1
Voltage 1230V/50Hz or 3400v/50Hz	1
Most common global voltages at 50 or 60 Hz	1
Thermal protection	1
Lubricating oil
Food grade oil (FDA and USDA)	2
Electrical connection
Straight cable connector	1
Elbow stainless steel cable connector	2
Oil resistant PVC cable	1
LS halogen-free cable	2
Other options
Mechanical backstop	2
Operation with VFD	2
Note:1-fitted as standard 2-optional extras
