Flexible Rotation：The plastic ball bearings enable smooth and quick rotation, making them suitable forlight-load conveyance.
Good chemical stability：The cylinder body is usually made of PvC engineering plastic.
Low Noise：Compared to other series of products, it has slightly higher operating noise.
Motor type：
Key words：
Tag：
Pipe Parameters：Diameter 50x2.5mm or 38x1.5mm, made of PVC.
Shaft Parameters：Diameter 12mm, made of 45# steel or stainless steel 304.
End Cap Parameters：Plastic end cap with special plastic ball bearings embedded.
Bearing Specifications：Plastic bearings with inner and outer rings made of polyoxymethylene (POM)and balls made of stainless steel .
Processing Technology：Spring-press fit axial, and others.
Load capacity |
||||||||||
| Ø Tube/ thickness (mm） |
Ø Shaft (mm) |
Installation method | Max.static load [kg]at installation length [mm] | |||||||
| 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | |||
| φ38X1.5 | φ12 | Spring-loaded | 10 | 8 | 5 | 3.5 | 2 | 1.2 | - | - |
| φ50X2.5 | φ12 | Spring-loaded | 50 | 50 | 25 | 15 | 10 | 6.5 | 5 | 3.6 |

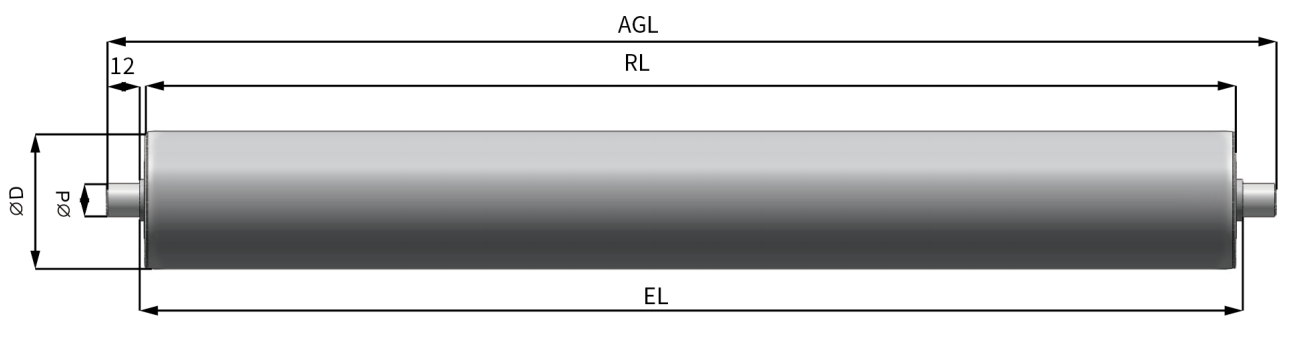

Dimensional drawing |
||||||
|
Ø Tube/ thickness (mm) |
Ø Shaft (mm) |
Bearing model |
Installation method |
Dimensional relationship |
||
|
φ38X1.5 |
φ12 |
Stainless Steel Ball & Plastic Ring |
Spring-loaded |
RL=TL+16 |
EL=RL+8 |
AGL=EL+22 |
|
φ50X2.5 |
φ12 |
Stainless Steel Ball & Plastic Ring |
Spring-loaded |
RL=TL+7.4 |
EL=RL+7 |
AGL=EL+22 |
