Amroll Drum Motor-TM113F

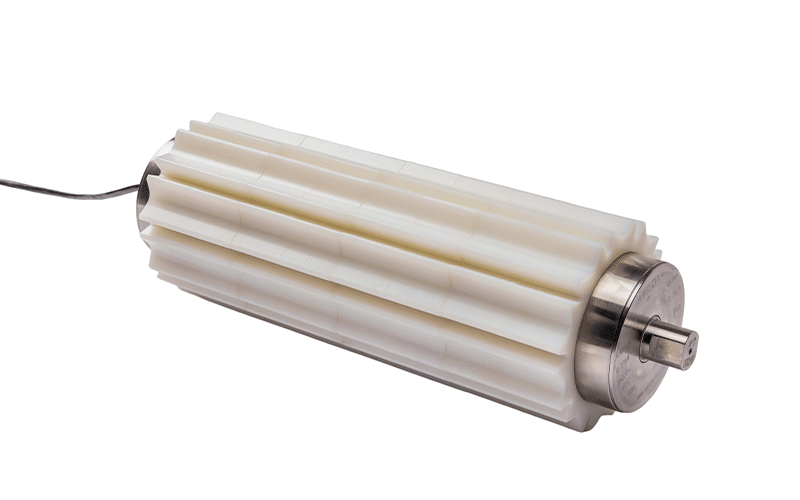

TM113F asynchronous oil immersed drum motor,all stainless steel material can meet the strict requirements of sanitary and humid environment.This product meets the requirements of high power operation and low noise in the limited transmission system space.This kind of drum motor is typically used in:

Food processing conveyor
Pharmaceutical packaging
Belt conveyors

Motor type：Asychronous,AC,1&3 phase
Key words：Belt drive, Oil-filled
Tag：Hygiene, Lagging

Description
Additional information

Drum motor shell

●Stainless steel crowned shell treated with anti-rust oil
●The standard shell is coronal and the surface is machined with non-slip threads

Gear transmission

●Gears machined and honed to AGMA/DIN 6 standards to ensure low noise

Motor

●Common global voltages at 50 Hz or 60 Hz
●AC asynchronous motor
●Motor windings insulation class F
●All motors with thermal protection
●Oil cooled electrical motor
●Cable length minimum 1.2 meters outside shaft

Sealing system

●Double shaft sealing system
●Sealing system-degree of protection IP 66/67

Oil

●Pre lubricated with oil
●Oil change recommended every 50,000 hours of operation

Other items

●Electromagnetic brakes are optional,but the length of the shell will be lengthened accordingly
●Belt speed and face width (L) on request
●International authority CE and UL safety certification
●Non-standard drum motors are available on request.

*AMROLL Drum Motor TM113F-1230V/50Hz**
Power [kW/hp]	No.of poles	Gear stages	Gear ratio	Nominal belt speed [m/s]	Full load torque [Nm]	Full load belt pull [N]	Full load current [A]	Min. face width (L) [mm]	Min.L Weight [kg]
0.12/0.16	4	3	60.66	0.15	49.04	868	0.84	340	13
			49.36	0.18	39.83	705
			41.07	0.21	35.41	627
			37.7	0.23	31.87	564
			31.59	0.27	25.49	451
			25.7	0.34	21.24	376
			21.38	0.4	17.68	313
			19.63	0.44	15.93	282
		2	15.71	0.55	12.88	230
			13.07	0.65	10.85	192
			12	0.71	10.34	183
	6	3	60.66	0.08	79.67	1410	1	340	15
	6	3	49.36	0.1	63.73	1128	1	340	15
0.15/0.20	4	3	60.66	0.14	61.3	1085	1.24	340	13
			49.36	0.17	49.78	881
			41.07	0.21	44.24	783
			37.7	0.22	39.83	705
			31.59	0.26	31.87	564
			25.7	0.33	26.56	470
			21.38	0.39	22.15	392
			19.63	0.43	19.94	353
		2	15.71	0.54	16.27	288
			13.07	0.64	13.56	240
			12	0.7	12.94	229
0.18/0.24	4	3	60.66	0.14	73.56	1302	1.4	355	14
0.18/0.24	4	3	49.36	0.17	59.78	1058	1.4	355	14
			41.07	0.21	53.11	940
			37.7	0.22	47.8	846
			31.59	0.26	38.25	677
			25.7	0.33	31.87	564
			21.38	0.39	26.56	470
			19.63	0.43	23.9	423
		2	15.71	0.54	19.49	345
			13.07	0.64	16.27	288
			12	0.7	15.48	274
0.23/0.31	4	3	49.36	0.17	76.33	1351	1.67	370	15
			41.07	0.2	67.86	1201
			37.7	0.22	61.08	1081
			31.59	0.26	48.87	865
			25.7	0.32	40.74	721
			21.38	0.38	33.96	601
			19.63	0.42	30.57	541
		2	15.71	0.53	24.97	442
			13.07	0.63	20.79	368
			12	0.68	19.78	350
At the min. face width (L), the total weight of a drum motor grows approx.2kg per 100 mm.

AMROLL Drum Motor TM113F-3 *400V/50Hz
Power [kW/hp]	No.of poles	Gear stages	Gear ratio	Nominal belt speed [m/s]	Full load torque [Nm]	Full load belt pull [N]	Full load current [A]	Min. face width (L) [mm]	Min.L Weight [kg]
0.12/0.16	4	3	60.66	0.14	49.04	868	0.42	340	10
			49.36	0.17	39.83	705
			41.07	0.2	35.41	627
			37.7	0.22	31.87	564
			31.59	0.27	25.49	451
			25.7	0.33	21.24	376
			21.38	0.39	17.68	313
			19.63	0.43	15.93	282
		2	15.71	0.54	12.88	230
			13.07	0.64	10.85	192
			12	0.7	10.34	183
	6	3	60.66	0.09	79.67	1410	0.67	340	13
	6	3	49.36	0.11	63.73	1128	0.67	340	13
0.15/0.20	4	3	60.66	0.14	61.3	1085	0.47	340	13
			49.36	0.17	49.78	881
			41.07	0.2	44.24	783
			37.7	0.22	39.83	705
			31.59	0.26	31.87	564
			25.7	0.32	26.56	470
			21.38	0.39	22.15	392
			19.63	0.42	19.94	353
		2	15.71	0.53	16.27	288
			13.07	0.64	13.56	240
			12	0.69	12.94	229
	6	3	49.36	0.11	79.67	1410	0.82	340	15
0.18/0.24	4	3	60.66	0.14	73.56	1302	0.57	340	13
			49.36	0.17	59.78	1058
			41.07	0.2	53.11	940
			37.7	0.22	47.8	846
			31.59	0.26	38.25	677
			25.7	0.32	31.87	564
			21.38	0.39	26.56	470
			19.63	0.42	23.9	423
		2	15.71	0.53	19.49	345
			13.07	0.64	16.27	288
			12	0.69	15.48	274
0.25/0.34	4	3	49.36	0.16	82.99	1469	0.84	355	15
			41.07	0.2	73.73	1305
			37.7	0.22	66.39	1175
			31.59	0.26	53.11	940
			25.7	0.32	44.29	784
			21.38	0.38	36.89	653
			19.63	0.42	33.22	588
		2	15.71	0.52	27.12	480
			13.07	0.62	22.6	400
			12	0.68	21.47	380
0.37/0.50	4	3	31.59	0.26	78.6	1391	1.13	370	15
			25.7	0.32	65.5	1159
			21.38	0.38	54.59	966
			19.63	0.42	49.13	870
		2	15.71	0.52	40.14	710
			13.07	0.62	33.45	592
			12	0.68	31.86	564
0.55/0.75	2	3	41.07	0.4	81.14	1436	1.24	370	15
			38.5	0.44	73.03	1293
			31.59	0.53	59.66	1056
			25.7	0.65	49.72	880
			21.38	0.79	40.57	718
			19.63	0.85	36.51	646
		2	15.71	1.1	29.83	528
			13.07	1.3	24.86	440
			12	1.4	23.68	419
At the min. face width (L), the total weight of a drum motor grows approx.2 kg per 100 mm.

TM113F optional list-drum motor/idler pulley
Specifications	Drum motor	Idler pulley
Shell
Stainless steel(std. 304) crowned	1	1
Stainless steel(std. 304) cylindrical	2	2
Stainless steel(std. 304) cylindrical+ key	2	2
End housing (front & rear)
Cast stainless steel(std. 304)	1	1
Shaft (front & rear)
Stainless steel(std. 304)	1	1

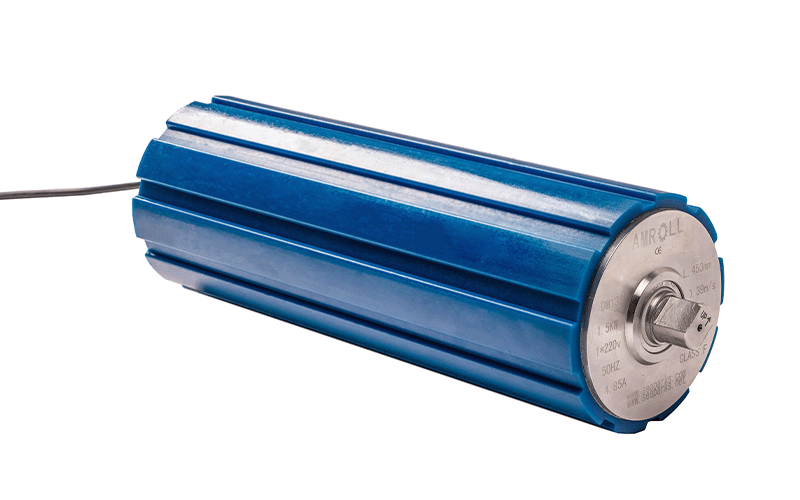

Rubber lagging
Hot vulcanized black smooth rubber lagging	2	2
White and blue rubber lagging in food quality	2	2
Urethane lagging	2	2
Sprockets for modular belting	2	2
V-grooves in the rubber lagging	3	3
Electrical motors
1 or 3-phase asynchronous motor	1
Voltage 1230V/50Hz or 3400v/50Hz	1
Dual voltage motor	2
Most common global voltages at 50 or 60 Hz	1
Thermal protection	1
Lubricating oil
Food grade oil (FDA and USDA)	2
Electrical connection
Straight cable connector	1
Elbow stainless steel cable connector	2
Terminal box connector	3
Oil resistant PVC cable	1
LS halogen-free cable	2
Screened cable (for VFD and brakes)	3
Other options
Mechanical backstop	2
Electromagnetic brake	2
Modified for vertical or angled mounting	3
Operation with VFD	2
Note:1-fitted as standard 2-optional extras 3-available as limited option but need to confirm with manufacturer

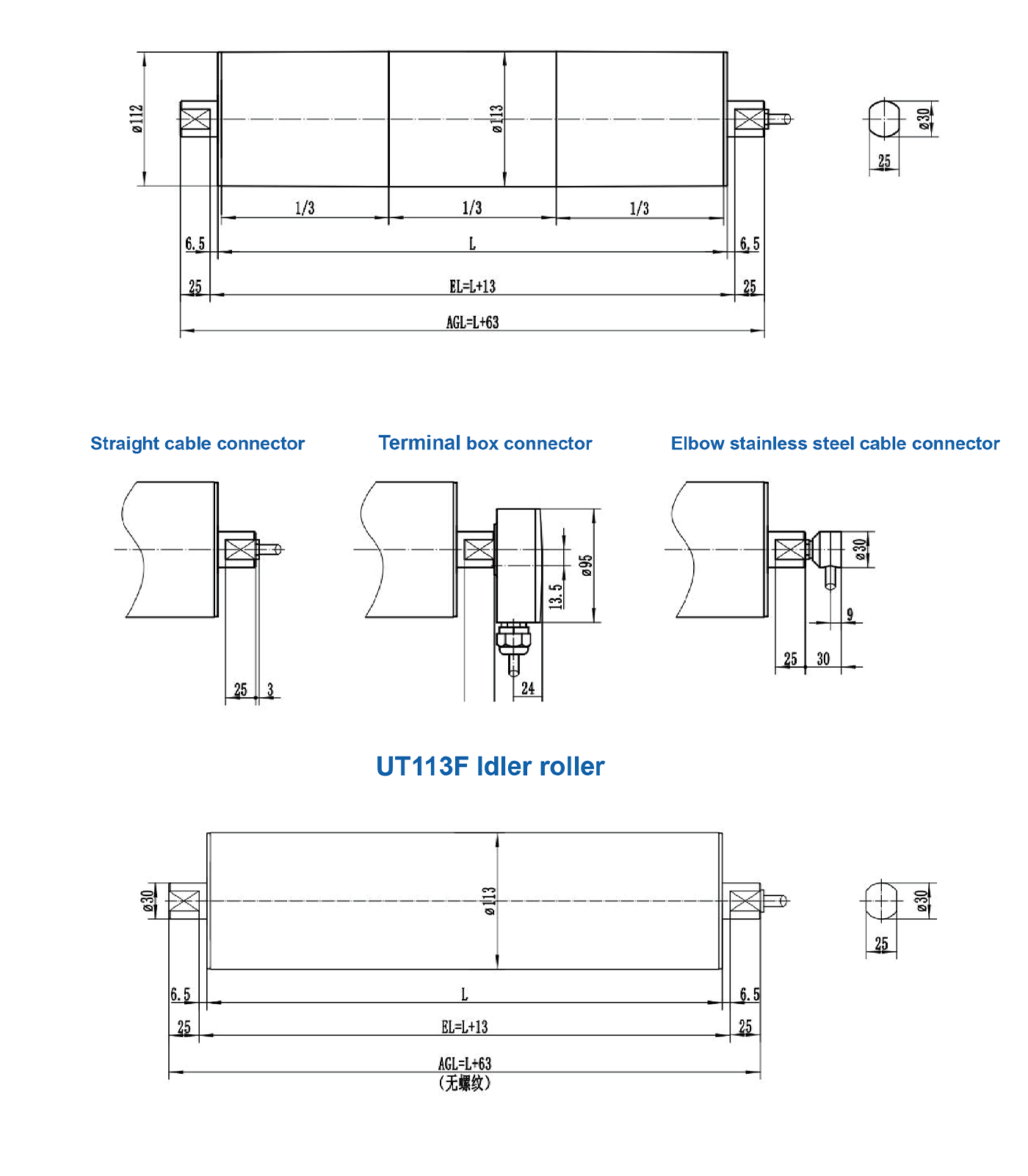

Standard Dimension

TM113F Drum motor
